4.2a 2.2 Nm Nema 23 Stepper Motor High Torque Series For 3d Printer Round Shaft 60MM

Name: 42a 22 Nm Nema 23 Stepper Motor High Torque Series For 3d Printer Round Shaft 60MM
Brand: JIUQI
Price: 2 USD

Quality 4.2a 2.2 Nm Nema 23 Stepper Motor High Torque Series For 3d Printer Round Shaft 60MM for sale

Brand Name : JIUQI

Model Number : HB57-JQ-1

Certification : RoHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 100PCS

Price : $2~$5/PCS

Payment Terms : T/T, Western Union,paypal

Supply Ability : 200000 PCS/MONTH

Delivery Time : Trial orders :2 WEEKS Bulk orders: within 3 weeks

Packaging Details : with export carton . Bulk order with pallets

Step Angle : 1.8°

Frame Size : 57mm*57mm

Current : 2.8A

Holding Torque : 1.8N.m

Phase : 2

Type : Hybrid

Highlight : Hybrid Stepper Motor,3D printer stepper motor,57MM NEMA 23 stepper motorr

PRODUCT NAME : HYBRID MOTOR

Contact Now

NEMA 23 2phase 2.8A Hybrid Stepper Motor High Torque With Round Shaft

1. Specification

PN	Step angle	Current	Holding torque	weight	No. of leads	Motor length
PN	(°)	A	N.m	kg		mm
HB57-JQ-1	1.8	2.8	0.55	0.47	4	41
HB57-JQ-2	1.8	5	0.9	0.58	8	51
HB57-JQ-3	1.8	2.8	1.2	0.65	4	56
HB57-JQ-4	1.8	2.8	1.8	1.1	4	76
HB57-JQ-5	1.8	5	2.2	1.2	4	60
HB57-JQ-6	1.8	4.2	2.8	1.4	4	112

2. Description :

NEMA 23 frame size
High step accuracy and resolution
Low vibration and noise
Can be customized for winding current, shaft options and cables and connectors.
Two-phase, three-phase and four-phase

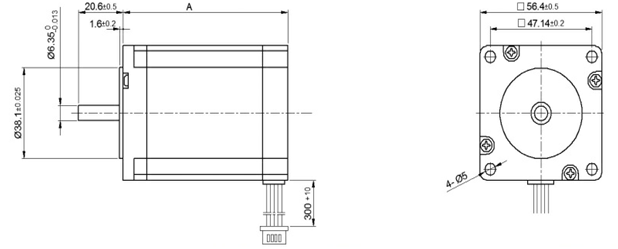

3. Mechanical Dimension:MM

4.2a 2.2 Nm Nema 23 Stepper Motor High Torque Series For 3d Printer Round Shaft 60MM

4. Performance curve

4.2a 2.2 Nm Nema 23 Stepper Motor High Torque Series For 3d Printer Round Shaft 60MM

5. Typical Applications

· 3D Printer

· Monitoring Equipment

· Medical equipment

· office automationadvertising equipment

· advertising equipmen

· CNC Engraving Machine

6. Terms of trade

Terms of price	FOB,CIF,CFR,EXW,DDP,etc.
Terms of payment	100% T/T in advance for samples
Terms of payment	Bulk quantity payment way can be negotited
Warranty	12 months limited warranty once the items are delivered to the buyer.
Lead time	Usually within 2 weeks for trial orders, within 3 weeks for bulk orders.
Package	Cartons /Pallets
Place of loading	Shanghai, Ningbo, etc.
Shipment carrier	Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders.
Delivery time	Usually within 5 working days by Express 15-30 working days by vessel
