High Torque Geared Stepper Motor 12v Dc 1/16 Ratio For Refrigerator

Name: High Torque Geared Stepper Motor 12v Dc 116 Ratio For Refrigerator
Brand: JIUQI
Price: 0.95 USD

Quality High Torque Geared Stepper Motor 12v Dc 1/16 Ratio For Refrigerator for sale

Brand Name : JIUQI

Model Number : 24BYJ48-116

Certification : RoHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 100PCS

Price : $0.95~$3/PCS

Payment Terms : T/T, Western Union,paypal

Supply Ability : 200000 PCS/MONTH

Delivery Time : Trial orders :2 WEEKS Bulk orders: within 3 weeks

Packaging Details : with export carton . Bulk order with pallets

STEP ANGLE(DEGREE) : 11.25

VOLTAGE : 12V

RESISTANCE : 120

GEAR RATIO : 1:16

PHASE : 4

TYPE : PERMANENT MAGNET

HIGH LIGHT : Micro Geared motor , 12V permanent magnet dc motor , 1/64 stepper motor

PRODUCT NAME : GEARED MOTOR

Contact Now

12V 1/16 Geared Motor High Torque Low Noise Stepping Motor For Refrigerator

Function
The micro stepping motor is a kind of induction motor. Its working principle is to use electronic circuit to supply power when DC is changed. The angular displacement is controlled by controlling the number of pulses, so as to achieve accurate positioning.
At the same time, the speed and acceleration of motor rotation can be controlled by controlling the pulse frequency, so as to regulate speed.

1. Description:

Product Highlights

Motor size:24MM

Drive method :Bipolar

Step angle:11.25 degree

Pull-out torque can be customized

customizable front plate available

Special features– Lead Screw, gearbox, pinion gear, connectors, shaft modifications

Low cost, high efficiency, precise step angle, and low noise

2. Specification:

Motor model	24BYJ48-117
voltage	12V
Resistance	430Ω±7%
Step angle	11.25°
Exciting mode	2-2P
Pull-in torque	300Hz≥29.4mN·m
Insulation resistance	≥100MΩ
Dielectric strength	AC 500V 1min
Operating Temperature Range	-30℃-60℃
weight	30g(ref.)

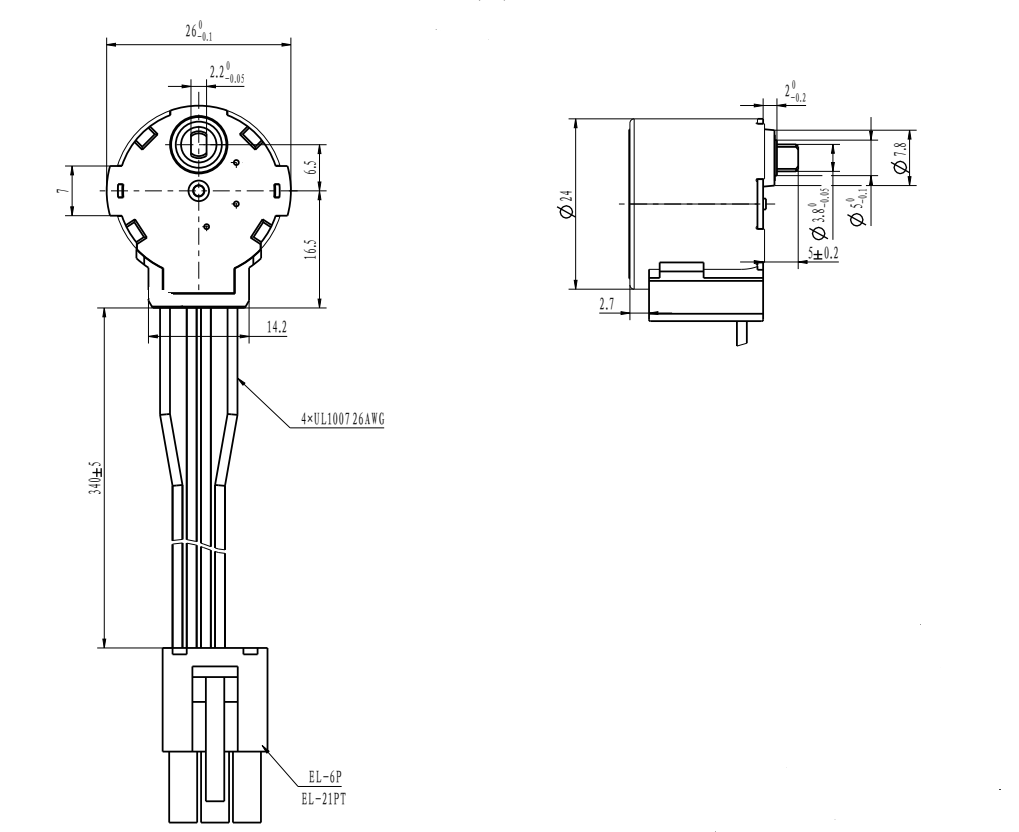

3. Mechanical Dimension:MM

High Torque Geared Stepper Motor 12v Dc 1/16 Ratio For Refrigerator

4. Typical Applications

High Torque Geared Stepper Motor 12v Dc 1/16 Ratio For Refrigerator

5.Terms of trade

Terms of price	FOB,CIF,CFR,EXW,DDP,etc.
Terms of payment	100% T/T in advance for samples
Terms of payment	Bulk quantity payment way can be negotited
Warranty	12 months limited warranty once the items are delivered to the buyer.
Lead time	Usually within 2 weeks for trial orders, within 3 weeks for bulk orders.
Package	Cartons /Pallets
Place of loading	Shanghai, Ningbo, etc.
Shipment carrier	Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders.
Delivery time	Usually within 5 working days by Express 15-30 working days by vessel
